handheld laser welding machine
Handheld laser welding machine
It is widely used for welding the metal materials.
We have two models for you to select.Model:BXM-FL1500W-LH, BXM-FL1800W-LH
Both of them are 3 in 1 handheld laser welder.
Handheld laser welding machine
It is widely used for welding the metal materials.
3 IN 1 HANDHELD LASER WELDING MACHINE
Model:BXM-FL1500W-LH
Model:BXM-FL1800W-LH
|
|
|
Model:BXM-FL1500W-LH |
Model:BXM-FL1800W-LH |
|||
|
1 |
Structure |

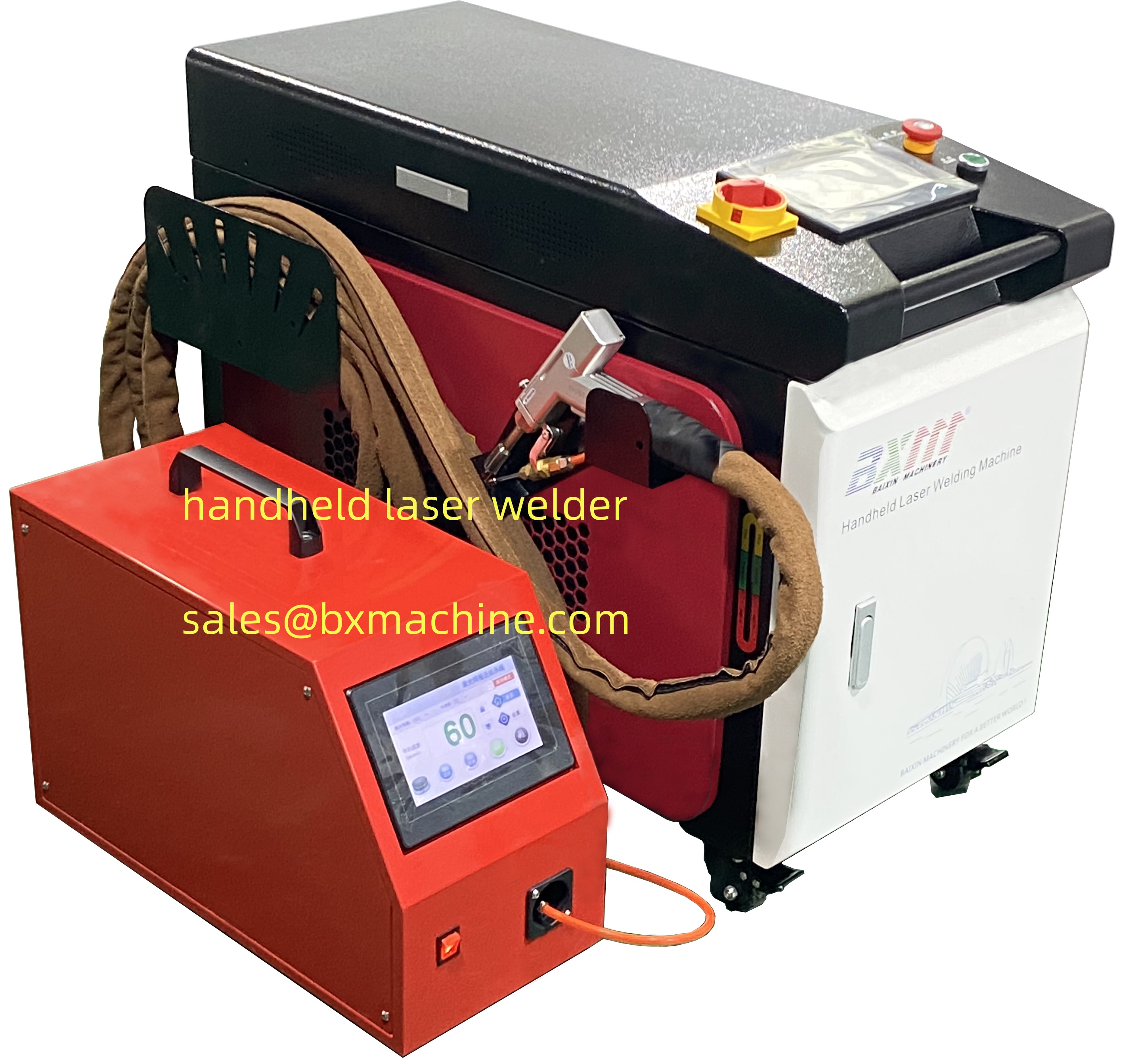

Hand-held Laser Welder with water cooling system and TIG wire feeding system.
Water Cooling Window Hand-held Welding Focusing position system inside protection Head Adjust and lock |
||||
|
2 |
Function |
Thickness of the material (Protective gas:Argon or nitrogen ) |
||||
|
|
Stainless Steel |
Steel |
Aluminum |
Galvanized sheet |
||
|
BXM-FL1500W-LH |
0.5~2.0mm |
0.5~2.5mm |
1.0~1.2mm |
0.5~1.0mm |
||
|
BXM-FL1800W-LH |
0.5~3.0mm |
0.5~3.5mm |
1.0~2.5mm |
0.5~2.5mm |
||
|
3 |
Laser control mode |
TTL Leve/GUI + Touch LCD |
||||
|
4 |
Laser Output |
1500W 10% ~ 100% adjustable |
1800W 10% ~ 100% adjustable |
|||
|
5 |
Laser wave length |
1080nm±5% |
1080nm±5% |
|||
|
6 |
Fiber Length |
10 meter |
||||
|
7 |
Type of joint |
QBH |
||||
|
8 |
Aim and position |
Red light indicates+ Pubic Angle and Positive Angle fixture |
||||
|
9 |
Spot diameter |
0.5~5.0 mm |
||||
|
10 |
Sharp length |
1~2mm |
||||
|
11 |
Focus area |
F150 mm |
||||
|
12 |
Power supply |
Single Phase220Vac50Hz,4.5KW |
Single Phase220Vac50Hz,5.5KW |
|||
|
13 |
Cooling system |
Water cooling system inside the main body. Dual constant temperature. About 25℃for cooling the laser generator, about 28℃for cooling the laser head. Temperature can be re-adjustable according to the environment. |
||||
|
14 |
Environment |
Temperature 0℃-40℃，Humidity 5%-75%, clean without ,Focal Free Zone |
||||
|
15 |
Size and weight |
1.2mX1mX1.1m 150KG |
||||
